WG Sourcing Products - Remote Oil Filters

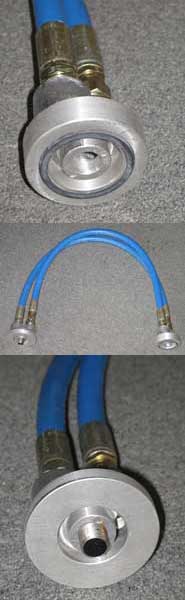

The WG Sourcing remote mounted lube oil filter system was originally designed for industrial engines with limited or no access to the engine’s oil filter cartridge. This system allows the original OEM filter cartridge to be relocated to a more accessible location. WG Sourcing’s remote filter system installs simply by spinning on the adapter with seal to the engine’s filter block. To ensure proper lubrication each adapter and filter head is custom machined in accordance to an engine’s specific thread and oil-flow specifications. WG Sourcing’s remote mounted filter system can also be used in combination with a larger filter cartridge to increase the engine’s oil filter service interval.

All WG Sourcing remote filter systems can be supplied completely assembled with hoses and fittings. WG Sourcing uses quality PARKER HANNIFIN 436 series hoses on all complete assemblies. WG Sourcing uses this high pressure hose because of the its high bend radius and temperature rating. A thin walled hose may collapse if the bend radius is too tight, resulting in oil-flow restriction. Detailed installation instructions are supplied with each component.

Features and Advantages

  • System relocates oil filter cartridge for better accessibility
  • Accepts original OEM filter cartridge
  • Made of heavy-duty cast aluminum alloy
  • High-flow 3/4" NPTF inlet/outlet ports
  • Spin-on adapter for easy installation
  • Specifically engineered to each engine's specifications
  • System can be customized to meet each customer-specific requirement
  • Standard model available with thread sizes from 3/4" to 1-1/8"
  • Available completely assembled with hoses and fittings
  • Universal filter head mounting bracket can be mounted in four directions


STANDARD REMOTE FILTER SYSTEMS

THREAD SIZE KIT WITH HOSES HOSE SIZE FILTER HEAD ADAPTER WITH SEAL
3/4"-16 150-3400-00 Dash #10 149-0034-00 148-0034-00 **
3/4"-16 150-3402-00 Dash #12 149-0034-00 148-0034-00 **
1"-12 150-0102-00 Dash #12 149-0001-00 148-0001-00 **
1"-16 150-0102-01 Dash #12 149-0001-01 148-0001-01 **
1"-1/8"-16 150-0118-00 Dash #12 149-0118-00 148-0118-00 **
M20x1.5 150-2000-00 Dash #10 149-0020-00 148-0020-00 *
M20x1.5 150-2000-01 Dash #10 149-0020-01 148-0020-00 *
M20x1.5 150-2000-02 Dash #10 149-0020-02 148-0020-01 **
M24x1.5 150-2402-00 Dash #12 149-0024-00 148-0024-00 ***
M25x1.5 150-2500-00 Dash #10 149-0025-00 148-0025-00 **
M26x1.5 150-2600-00 Dash #12 149-0026-00 148-0026-00 **


*
Seal Filter Nitrile Black
PART #414-5375-01
ID: 2.1" | OD: 2.29" | THK: .255"
***
O-Ring Buna-N
PART #413-8271-55
ID: 71mm | OD: 85mm | THK: 5.5mm
**
Seal Filter Nitrile Black
PART #414-5375-01
ID: 2.485" | OD: 2.648" | THK: .255"


To find a thread and seal specification of a specific engine make and model go to Wix Filters website at http://www.wixfilters.com/filterlookup/index.asp
